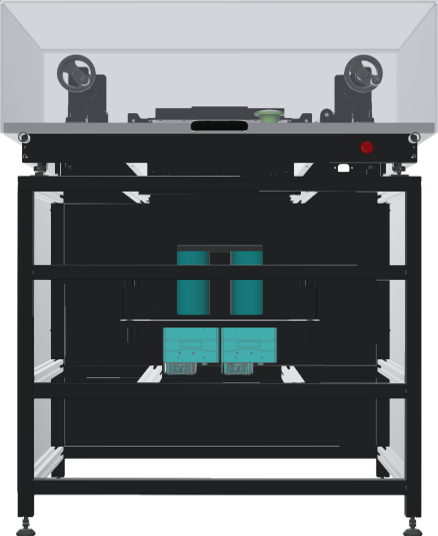

High-precision roll & cut-sheet scanner
Model
Technical specifications
| Resolution | 12 µm16 µm20 µm | Sensor | 2 × 250 MP (2.81 µm)250 MP (2.81 µm)150 MP (3.76 µm) | |
| Geometric accuracy | ±2 µm RMSE | Dynamic range | 3.4D3.4D3.1D | |
| Optical density | 0.001 – 3.7 D | Illumination | LED 64×64 | |
| Lenses | LF5545M-M72 | Scanning range | 256×342 mm | |
| Media | Roll / Cut sheet | OS | Windows 10/11 64-bit |
Scanning speed
Black & White
True color
Output formats

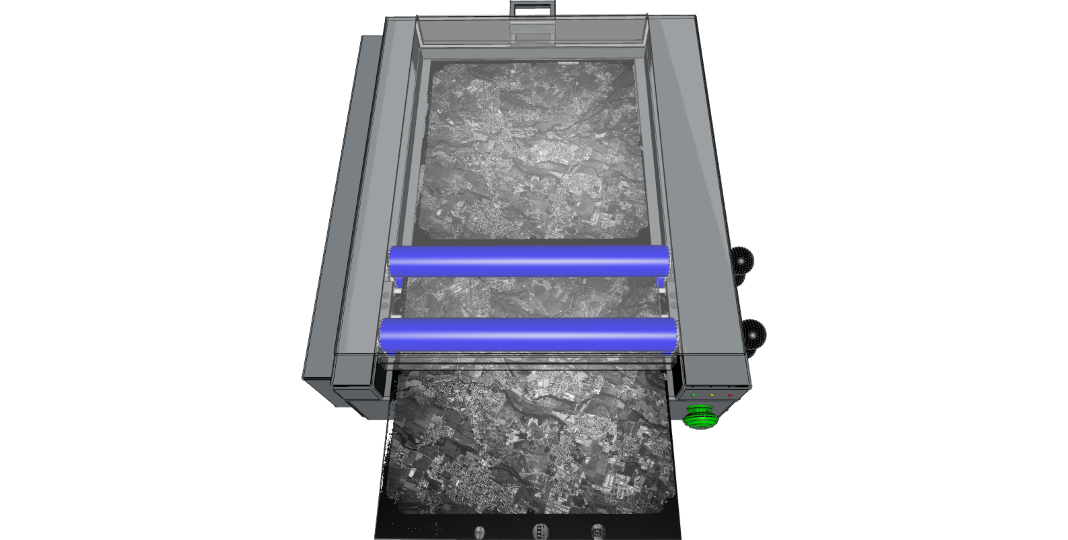

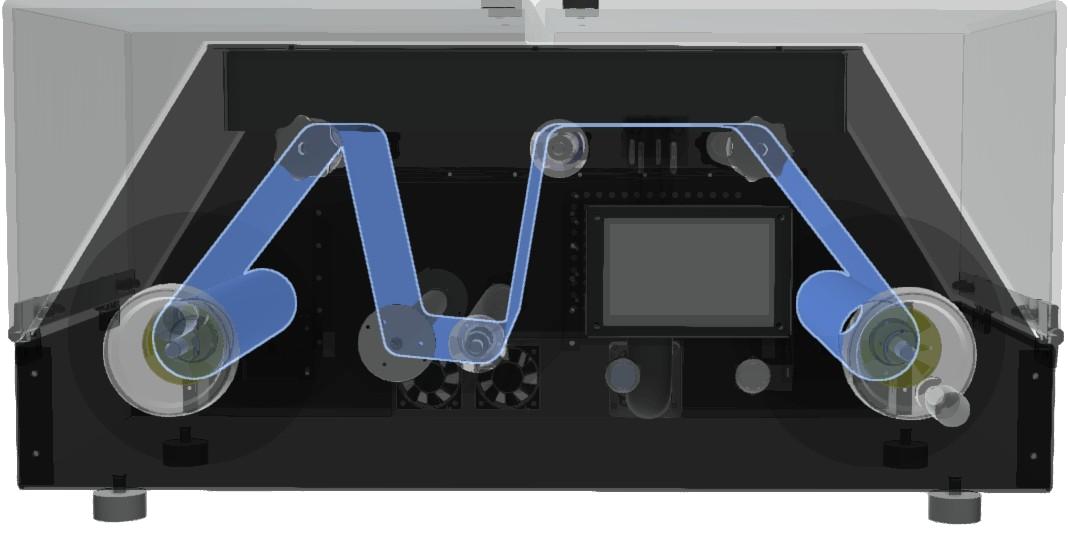

Professional-grade cleaning and transport in a single pass. Four smart programs, silicone rollers, vacuum suction and spool-free 12V operation.
Professional-grade cleaning and transport in a single pass. Four smart programs, silicone rollers, vacuum suction and spool-free 12V operation.
Model
Detailed specifications
| Cleaning system | 2-in-1 Film Care2-in-1 Scan Care | Cleaning stages | 2-stages2-stages | |
| Rollers | 4× silicone4× silicone | Vacuum | Vacuum-assistedVacuum-assisted | |
| Spool required | NoNo | Enclosure | Transparent coversTransparent covers |

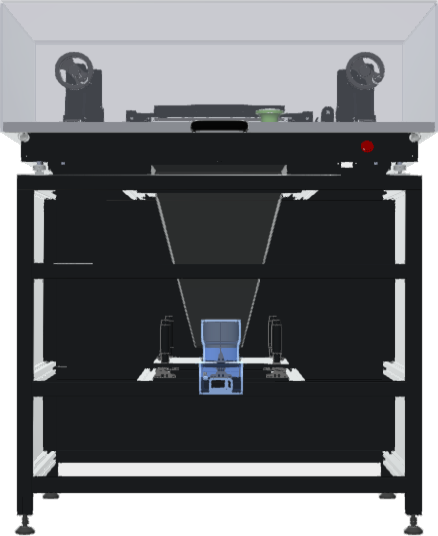

Bring your film scanner back to production with a USB system upgrade.
Technical specifications
| Min pixel size | 8 µm | Geometric resolution | 1 µm | |
| RMSE | ±3 µm | Max optical density | 3.4 D | |
| Optical density range | 2.7 D | Video system | 14 bit / channel | |
| Max scanning area | 260×260 mm | Roll film | Up to 240 mm wide | |
| CCD sensor | SONY 3×5300×8 | Light source | Power LED array | |
| Computer / OS | Intel / Windows | Output color depth | Color 42/24 bit B/W 14/8 bit |
Typical scanning time — 230×230 mm
Color 24-bit mode
| Pixel size | Time | Size |
|---|---|---|
| 8 µm | 14 min | 2368 MB |
| 12 µm | 10 min | 1050 MB |
| 16 µm | 8 min | 591 MB |
Black & White 8-bit mode
| Pixel size | Time | Size |
|---|---|---|
| 8 µm | 8 min | 788 MB |
| 12 µm | 6 min | 350 MB |
| 16 µm | 5 min | 197 MB |
Output formats
